iBridge Flex Sets - 8 - 8p - X

The famous iBridge is here. This gadget is a great time saver for open-ended cases where there is no signature fault. It has always been awkward to diode mode a connector, but not anymore. The iBridge makes it easy--the diode mode readings are written right there on the iBridge!

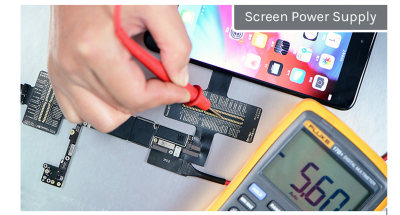

The iBridge really shines for voltage testing. To do any functional testing, you have to have the screen, camera, etc actually plugged into the connector. This is what generates the enable signals back to the system so that the device knows to create the voltages you are trying to measure. But...with the connector in use, how can you get your probes in there? The Qianli iBridge cleverly solves this by extending the flex and providing test points for every line, WHILE the screen/camera/etc is plugged in.

The iBridge is sold in flex sets by device type. For example--The iPhone 8 iBridge contains all the iBridge flexes that plug into every iPhone 8 connector.

iPhone 8 -  4 flexes
iPhone 8 plus - 4 flexes
iPhone X - 5 flexes

Display and Touch flexes only are available for iPhones 6 through 7 plus.
